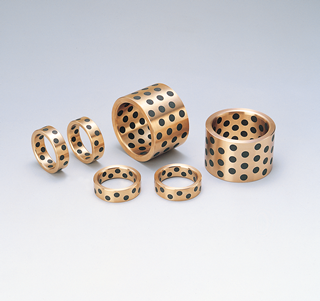

Oiles 500HP-SL1

Hard special copper alloy bearings with embedded solid lubricant

Products available in standard shapes and dimensions.
For details, please contact the nearest sales office.
https://www.oiles.co.jp/en/corporate/office/

Products that comply with the RoHS 2 Directive
For products with this mark, all 10 substances (Pb, Hg, Cd, Cr+6, PBB, PBDE, DEHP, BBP, DBP, and DIBP) are within limits specified by the RoHS 2 Directive.
*Pb (lead) content is based on the value specified in the RoHS 2 Directive as of the end of March 2021.
Products that comply with the ELV Directive
For products with this mark, substances such as Pb, Hg, Cd,
and Cr+6 are within limits specified by the ELV Directive.

Bearings for the highest loads

The Oiles 500HP series are bearings composed of hard special alloy bases and embedded solid lubricant. They demonstrate outstanding wear resistance at high bearing pressures.

Service range
Lubrication conditions	Dry	Periodic lubrication
Service temperature range （℃）	-40～+150	-40～+150
Allowable max. pressure P （N/mm²）	73.0	73.0
Allowable max. velocity V （m/s）	0.10	0.25
Allowable max. PV value （N/mm²・m/s）	1.65	3.25

Features

Bears higher loads than the 500SP5.
Demonstrates superior wear resistance under high-load and lowspeed applications.

PDF Catalog

For detailed product specifications, please refer to the catalog in PDF format.

*The catalog (PDF) contains the operating range, test data, standard product dimension charts, etc.
