Mass-producible plastic bearings with wide-range applications
The Oiles 80 series are self-lubricating bearings made of polyacetal in which lubricating oil and special filler are distributed uniformly.
| Service range | |
|---|---|
| Lubrication conditions | Dry |
| Service temperature range （℃） |
-40～+80 |
| Allowable max. pressure P （N/mm2） |
17.5 |
| Allowable max. velocity V （m/s） |
0.85 |
| Allowable max. PV value （N/mm2・m/s） |
2.45 |
Features
- Serviceable without the need of lubrication. Features superior load resistance and wear resistance.
- Low coefficient of friction and superior speed characteristics.
- Prevents stick slip and squeak noises.

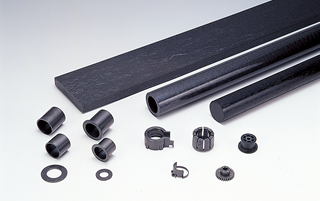

- Injection-molded and can be made in complicated shapes. Has good mass productivity.
- Standard products and materials for machining are available in various sizes.
Standard Products
Various standard products are available. Use the following links to check model numbers (according to approximate dimensions). * Please note that some items may not be listed. Refer to the electronic catalog for more information.
Oiles 80 Bushings 80B
Oiles 80 Flange Bushings 80F
Oiles 80 Washer 80W
PDF Catalog
For detailed product specifications, please refer to the catalog in PDF format.
*The catalog (PDF) contains the operating range, test data, standard product dimension charts, etc.
