A multi-layer bearing with excellent speed and load characteristics

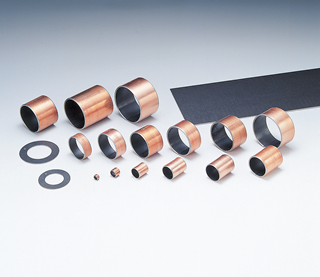

The Oiles DRYMET ST is a self-lubricated bearing consisting of three layers: a layer of self-lubricating polyacetal plastic, a sintered bronze layer, and a metal backing.
| Service range | |
|---|---|
| Lubrication conditions | Dry |
| Service temperature range （℃） |
-40～+120 |
| Allowable max. pressure P （N/mm2） |
24.5 |
| Allowable max. velocity V （m/s） |
1.15 |
| Allowable max. PV value （N/mm2・m/s） |
3.25 |
Features
- It can be used without lubrication, has a low coefficient of friction, and has excellent load-bearing characteristics.
- Excellent wear resistance in places where a lubricating film has difficulty forming, such as reciprocating motion, oscillating motion, and frequent starting/stopping.
- The thin bearing allows a compact design.
- Excellent dimensional stability, mechanical strength, and thermal conductivity.
- Standard products of various sizes and plate materials are available.
PDF Catalog
For detailed product specifications, please refer to the catalog in PDF format.
*The catalog (PDF) contains the operating range, test data, standard product dimension charts, etc.
