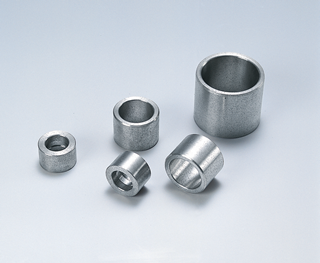

Oiles 2000S

Sintered oil-impregnated bearings with dispersed solid lubricant

Economical bearings usable in any sliding direction

The Oiles 2000S series are self-lubricating bearings made of a newly developed special alloy, where solid lubricant mainly made of graphite is dispersed impregnated with more oil.

Service range
Lubrication conditions Dry
Service temperature range
（℃）		 -40～+120
Allowable max. pressure P
（N/mm2）		 29.0
Allowable max. velocity V
（m/s）		 1.00
Allowable max. PV value
（N/mm2・m/s）		 1.63

Features

  • Serviceable without the need for lubrication. Demonstrates higher performance when greased.
  • Distributed solid lubricant allows motions in any direction.
  • Features low coefficient of friction and quite superior wear resistance.
  • Lower prices than bearings with copper alloy bases. * The 2000S was renamed from the 2500.

PDF Catalog

For detailed product specifications, please refer to the catalog in PDF format.

*The catalog (PDF) contains the operating range, test data, standard product dimension charts, etc.
