Oiles CERMET M - OILES CORPORATION

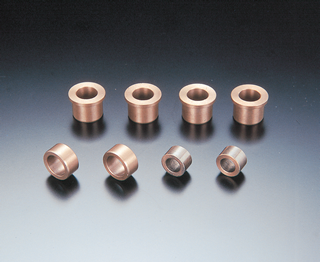

Small-diameter sintered bearings featuring superior speed characteristics

The Oiles CERMET series are self-lubricating bearings made of sintered alloy, in which solid lubricant mainly consisting of molybdenum disulfide is dispersed.

Service range
Lubrication conditions	Dry	Periodic lubrication
Service temperature range （℃）	-40～+200	-40～+150
Allowable max. pressure P （N/mm²）	10.0	10.0
Allowable max. velocity V （m/s）	0.85	1.65
Allowable max. PV value （N/mm²・m/s）	1.65	2.45

Features

Serviceable without the need for lubrication. Demonstrates higher performance when lubricated.
Demonstrates superior wear resistance in applications where oil film is seldom produced such as reciprocating motions, oscillation, frequent starts and stops, etc.
Standard products and materials for machining are available in various sizes.

PDF Catalog

For detailed product specifications, please refer to the catalog in PDF format.

*The catalog (PDF) contains the operating range, test data, standard product dimension charts, etc.

Oiles CERMET M
