Oiles Pillow 80

Unit bearings

Products available in standard shapes and dimensions.
For details, please contact the nearest sales office.
https://www.oiles.co.jp/en/corporate/office/

Products that comply with the RoHS 2 Directive
For products with this mark, all 10 substances (Pb, Hg, Cd, Cr+6, PBB, PBDE, DEHP, BBP, DBP, and DIBP) are within limits specified by the RoHS 2 Directive.
*Pb (lead) content is based on the value specified in the RoHS 2 Directive as of the end of March 2021.
Products that comply with the ELV Directive
For products with this mark, substances such as Pb, Hg, Cd,
and Cr+6 are within limits specified by the ELV Directive.

Self-aligning mechanism units

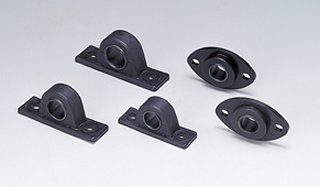

The Oiles Pillow 80 series are compact and lightweight unit bearings with self-aligning mechanisms.

Service range	間欠運転時	連続運転時
Lubrication conditions	Dry	Dry
Service temperature range （℃）	-20～+60	-20～+60
Allowable max. pressure P （N/mm²）	2.0	2.0
Allowable max. velocity V （m/s）	0.40	0.25
Allowable max. PV value （N/mm²・m/s）	0.5	0.30

Features

Serviceable without the need of lubrication.
Superior wear resistance.
Low coefficient of friction and superior speed characteristics.
Prevents stick slip and squeak noises.
The whole bearing unit is made of plastic. Small, lightweight, and superior corrosion resistance.
The standard products are available in various sizes.

PDF Catalog

For detailed product specifications, please refer to the catalog in PDF format.

*The catalog (PDF) contains the operating range, test data, standard product dimension charts, etc.
