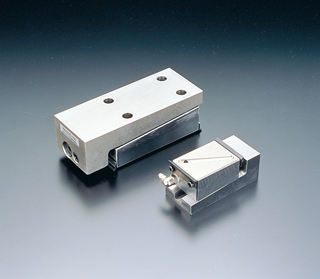

Oiles Shoe Units

Unit bearings

Products that comply with the RoHS 2 Directive
For products with this mark, all 10 substances (Pb, Hg, Cd, Cr+6, PBB, PBDE, DEHP, BBP, DBP, and DIBP) are within limits specified by the RoHS 2 Directive.
*Pb (lead) content is based on the value specified in the RoHS 2 Directive as of the end of March 2021.
Products that comply with the ELV Directive
For products with this mark, substances such as Pb, Hg, Cd,
and Cr+6 are within limits specified by the ELV Directive.

Shoe units for movable platens featuring superior wear resistance

The Oiles Shoe Units are unit bearings developed as shoe units of movable platens for injection molding machines.

Usable as not only movable platens but also various types of shims and spacers.
The sliding material is made of Oiles 2000 featuring superior wear resistance.
The slide seals are attached to the slide plates, eliminating troublesome adjustment of the slide seals after height adjustment.
The height is adjustable within the ±0.25 to ±0.7 mm range.

For detailed product specifications, please refer to the catalog in PDF format.

*The catalog (PDF) contains the operating range, test data, standard product dimension charts, etc.

Oiles Shoe Units
