Self-aligning type unit bearings applicable to high loads

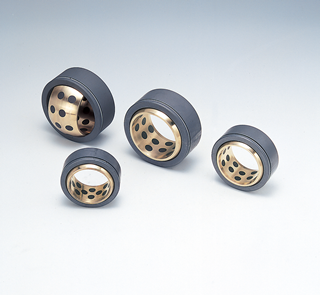

The Oiles 500 spherical bearings are self-aligning type bearings composed of the Oiles 500SP inner races and high carbon chromium bearing steel outer races, which are coated with molybdenum disulfide. The outer races are split into two parts, which are fi
| Service range | |
|---|---|
| Lubrication conditions | Dry |
| Service temperature range （℃） |
-40～+150 |
| Allowable max. pressure P （N/mm2） |
39.2 |
| Allowable max. velocity V （m/s） |
0.15 |
| Allowable max. PV value （N/mm2・m/s） |
0.80 |
Features
- Conforms to the ISO Standard E type bearings and compatible dimensionally. High precision.
- Applicable to large oscillating angles in circumferential oscillating motions.
- Serviceable without the need for lubrication. Features a very long service life.
PDF Catalog
For detailed product specifications, please refer to the catalog in PDF format.
*The catalog (PDF) contains the operating range, test data, standard product dimension charts, etc.
