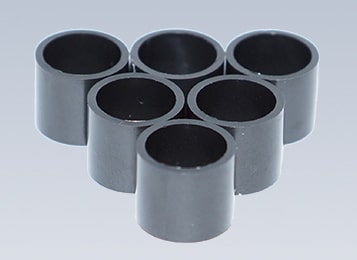

Oiles BIOLIGHT83-B1

Biomass plastic bearings

For details, please contact the nearest sales office.
https://www.oiles.co.jp/en/corporate/office/

Products that comply with the RoHS 2 Directive
For products with this mark, all 10 substances (Pb, Hg, Cd, Cr+6, PBB, PBDE, DEHP, BBP, DBP, and DIBP) are within limits specified by the RoHS 2 Directive.
*Pb (lead) content is based on the value specified in the RoHS 2 Directive as of the end of March 2021.
Products that comply with the ELV Directive
For products with this mark, substances such as Pb, Hg, Cd,
and Cr+6 are within limits specified by the ELV Directive.

A bearing with world-class friction performance as a biomass plastic bearing

This biomass plastic is made by adding fillers to resins derived from plants.
Biomass content: 45% (by weight)

Service range
Lubrication conditions	Dry
Service temperature range （℃）	-40～+140
Allowable max. pressure P （N/mm²）	19.5
Allowable max. velocity V （m/s）	1.20
Allowable max. PV value （N/mm²・m/s）	1.0

Features

Serviceable without the lubrication.
Superior dimensional stability due to the low swelling rate.
It features wear resistance and low coefficient of friction under a various condition. It can be used as a substitute
for polyacetal, which is widely used as a sliding material.
Compared to Oiles 83 (petroleum-derived polyacetal bearing), it reduces CO2 emissions and shows the same or better friction performance.

PDF Catalog

For detailed product specifications, please refer to the catalog in PDF format.

*The catalog (PDF) contains the operating range, test data, standard product dimension charts, etc.
