PRODUCTS

Oiles Compact Floating Cutters

Prevents chips, burrs, buckling that occur when simultaneously trimming and cutting scrap of steel and aluminum sheets.

Compact type for ordinary steel sheets, High reaction force type for high tensile strength steel sheets

Part number list

Standard product

Standard type OCFC5A-ST4
Option type with Backup plate OCFC5A-ST4-B
Option type with Backup plate & long cutter OCFC5A-ST4-B-LC

Material: Flame-hardened steel

Standard type OCFC13-ST6

Material: SKD11(HRC60～63)

Made-to-order (specifications modified depending on the cutter material)

Standard type OCFC5A-ST4-S The product will be made to order, so please contact our nearest sales office for the delivery date.
※https://www.oiles.co.jp/en/corporate/office/
Option type with Backup plate OCFC5A-ST4-B-S
Option type with Backup plate & long cutter OCFC5A-ST4-S-B-LC

Material: SKD11(HRC60～63)

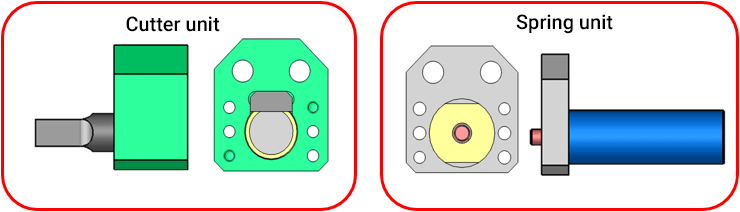

Separated single unit of OCFC

We also sell Spring unit and Cutter unit separately (as a single unit) for maintenance purposes.
*The numbers in parentheses indicate the cutter material.

　　　　　　　　　　　　　 　　　　　　　　　　　　　 　　　　　　　　　　　　　 　　　　　　　　　　　　　
OCFC5A single unit
Standard typeSpring unit common partsOCFC5A-ST4SU
Cutter unit（Flame-hardened steel）OCFC5A-ST4CU
Option type with Backup plate Cutter unit（Flame-hardened steel） OCFC5A-ST4CU-B
Cutter unit（SKD11） OCFC5A-ST4CU-S-B
Option type with
Backup plate & long cutter		 Cutter unit（Flame-hardened steel） OCFC5A-ST4CU-B-LC
Cutter unit（SKD11） OCFC5A-ST4CU-S-B-LC
　　　　　　　　　　　　　 　　　　　　　　　　　　　 　　　　　　　　　　　　　 　　　　　　　　　　　　　
OCFC13 single unit
Standard typeSpring unitOCFC13-ST6SU
Cutter unit（SKD11）OCFC13-ST6CU

Performance metrics

Model OCFC5A-ST4 OCFC5A-ST4-B
OCFC5A-ST4-B-LC		 OCFC13-ST6
Shear Force 5kN 5kN 13kN
Stroke 4mm 4mm 6mm
Trimming Angle ～10° ～10° ～10°
Scrap Cutting Angle ～10° ～20° ～10°
Durability 500,000 cycles

Advantages

  • Reduces chips and burrs
    Eliminates time-lag in cutting process and reduces chips and burrs by using a special high-pressure spring.
  • Durability (500,000 cycles)
    The zero-clearance design reduces wear caused by side pressure generated during trimming, resulting in a longer service life.
  • Compact design
    The use of our special springs allows for high resilience and unitization, making it possible to design a fl oating device that requires less space than conventional fl oating devices.
  • Maintenance free
    No lubrication is required due to the use of Oiles sliding parts.

Site of use

Frequently Asked Questions

Frequently asked questions about the Oiles Compact Floating Cutter are listed here.

Catalog (PDF)

The catalog (PDF) contains the operating range, test data, standard product dimension charts, etc.
